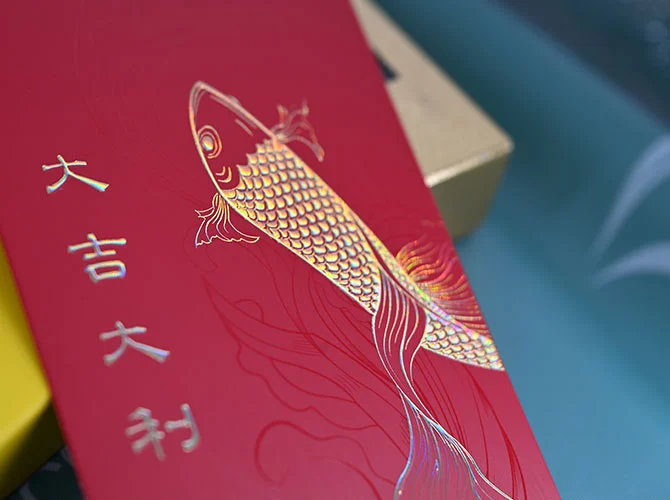

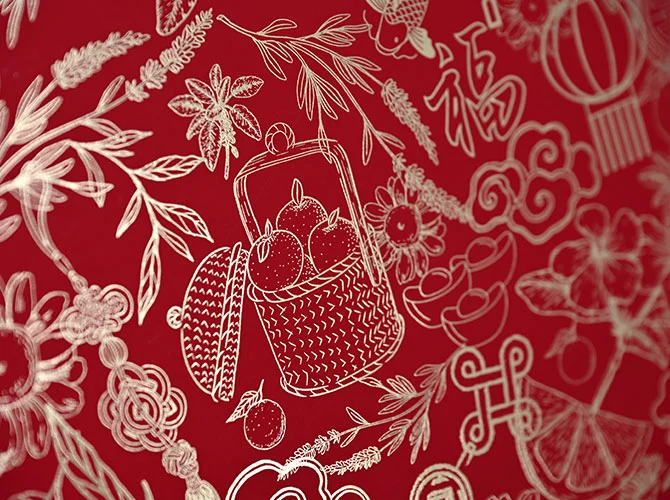

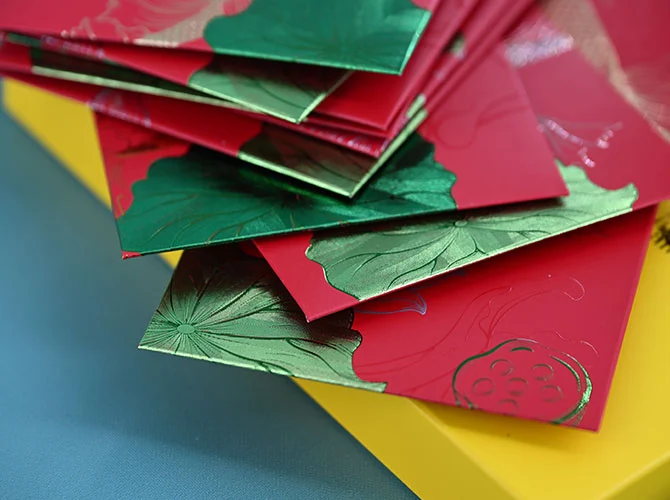

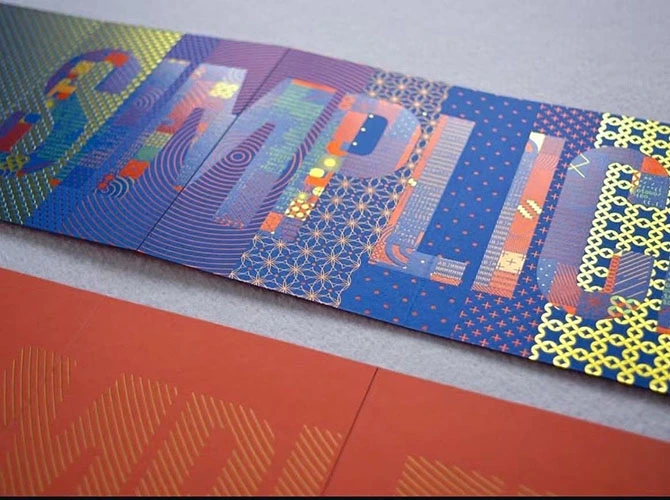

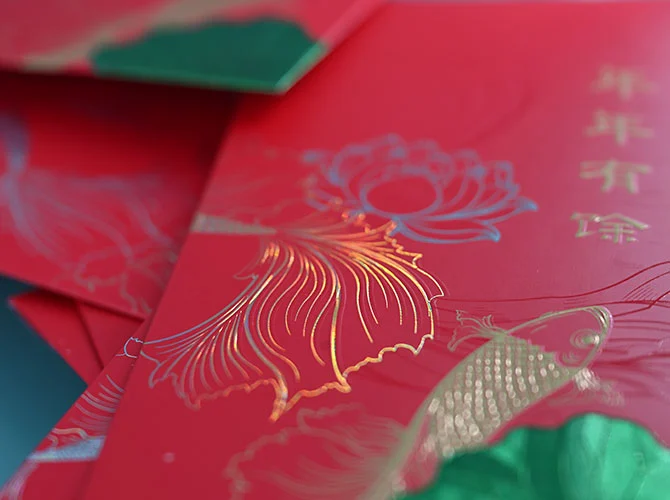

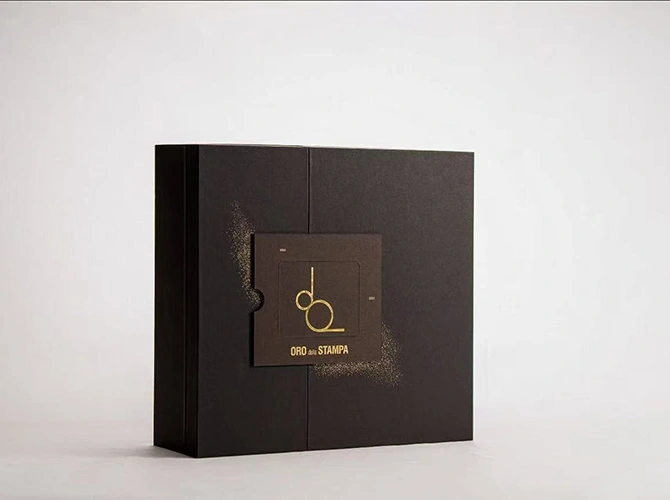

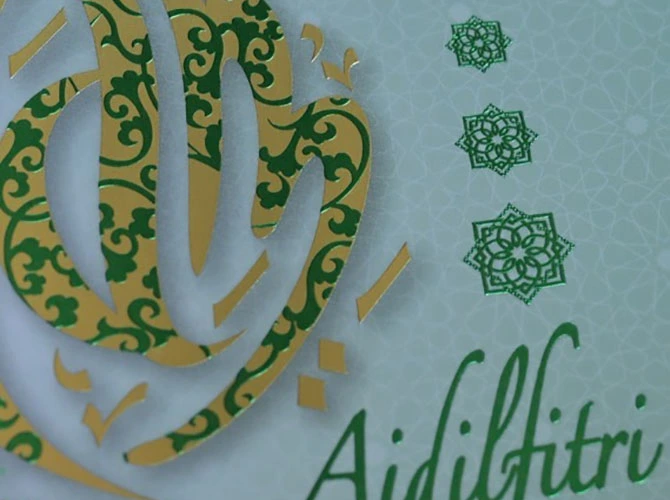

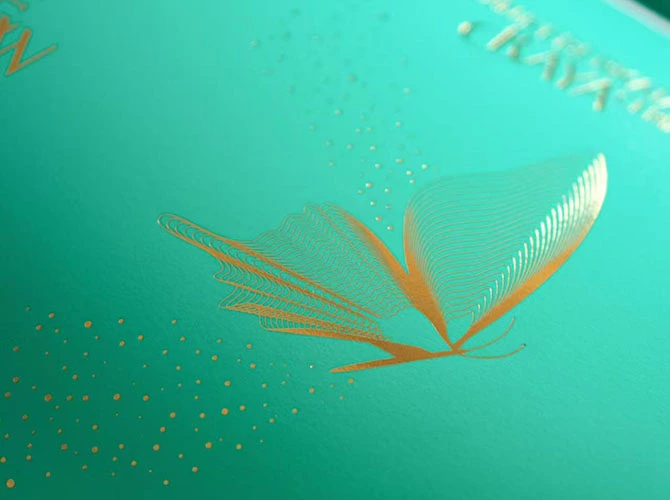

Hot Stamping Foils are specialized metallic or pigmented foil designed for both decorative and functional applications. They are widely used in the printing and packaging industries to add luxurious metallic or vibrant colorful designs to various substrates, including paper, cardboard, and plastic. These foils enhance the visual appeal and perceived value of products, making them ideal for branding, packaging, and promotional materials.
Send Inquiry6 general-purpose series organized by substrate type — select your application to find the right model
|
Model |
Application |
Applicable Substrates |
Temp. |
Press. |
Dwell/Speed |
Key Feature |
|---|---|---|---|---|---|---|
|
G100 |
General Plastic |
ABS, PP (treated), PS, PVC, PE (treated) |
100–160°C |
3–6 bar |
0.3–1.5 s |
Economical, versatile |
|
G300 |
Glass UV Surface |
UV-coated glass, cosmetic bottles, wine bottles, perfume bottles |
120–200°C |
4–8 bar |
0.5–2.0 s |
UV coating adhesion |
|
F100 |
Fabric & Leather |
Natural leather, synthetic leather (PU, PVC), cotton, polyester, nylon, canvas |
100–160°C |
3–6 bar |
0.5–2.0 s |
Soft hand feel |
|
F200 |
Rough Surface |
Textured plastics, uneven substrates, curved surfaces |
120–180°C |
5–9 bar |
0.8–2.5 s |
Superior conformability |
|
P100 |

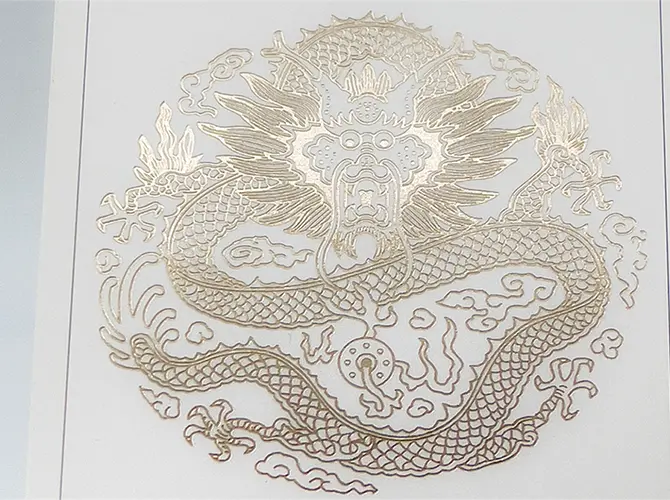

Paper & Cardboard |
Coated art paper, uncoated paper, cardboard, corrugated board, kraft paper |
80–150°C |
3–6 bar |
0.2–1.0 s |
Low temp, fast |
|
H100 |
High Speed |
Roll‑to‑roll compatible substrates for mass production |
120–180°C |
4–7 bar |
50–200 m/min |
Up to 200 m/min |
Note: All temperatures are recommended starting ranges. Optimal settings depend on specific substrate conditions, equipment type, and production environment. Conduct trials before full production runs.
ADVANCED PLASTIC FOIL — G200 SERIES
10 specialized formulations for demanding plastic substrates — higher performance than general series
|
MODEL |
VARIANT |
SUBSTRATES |
KEY FEATURE |
|---|---|---|---|
|
G200-LT |
Standard |
ABS, PP (treated), PS, PVC, PE (treated) |
Standard low-temp adhesion, consistent metallic transfer, broad plastic compatibility |
|
G200-RT |
Re-Stampable |
ABS, PP, PS, PVC, PE (all treated) |
Re-stampable technology, seam repair capability, decorative overlay support |
|
G200-EX |
Extreme Adhesion |
Difficult-to-bond plastics, low-surface-energy materials, composite plastics |
Maximum adhesion strength, low-surface-energy compatibility, enhanced durability |
|
G200-EC |
Eco Low-Halogen |
3C packaging, electronics housings, environmentally sensitive applications |
Low halogen (Cl<900ppm, Br<900ppm), RoHS/REACH compliant, IEC 61249-2-21 aligned |
|
G200-OL |
Olefin Resin |
Injection-molded PP, blow-molded PE, rigid containers, industrial PP/PE parts |
PP/PE resin optimized, rigid container compatible, molded surface penetration |
|
G200-UV |
UV Surface |
UV-cured coated plastics, vacuum-metallized (VM) plastics, electroplated parts |
UV coating adhesion, VM surface compatible, automotive/cosmetic grade (140-180°C) |
|
G200-DS |
Double-Sided |
Transparent plastics, PMMA, clear PET, semi-transparent PP/BOPP |
Simultaneous two-sided stamping, identical brilliance, single-pass production |
|
G200-PO |
Polyolefin Film |
OPP, CPP, BOPP films, metallized OPP |
OPP/CPP optimized, flexible packaging compatible, corona-treatment compatible |
*G200 VS. G100: G100 = standard plastics (ABS, PP, PS, PVC). G200 = challengingsubstrates: low-surface-energy, UV-coated, halogen-sensitive, rigid olefin, double-sided
STAMPING PARAMETERS (G200 SERIES)
|
Parameter |
Standard Range |
Pressure |
Dwell Time |
Notes |
|---|---|---|---|---|
|
Temperature |
100–180°C |
3–9 bar |
0.3–2.5 s |
Varies by substrate |
Type E:

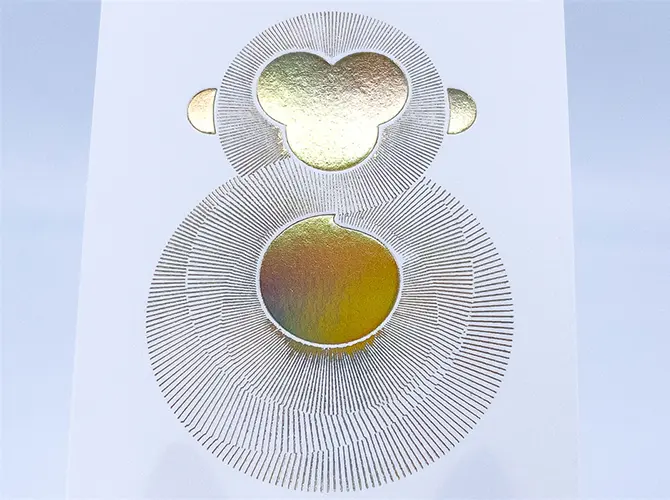

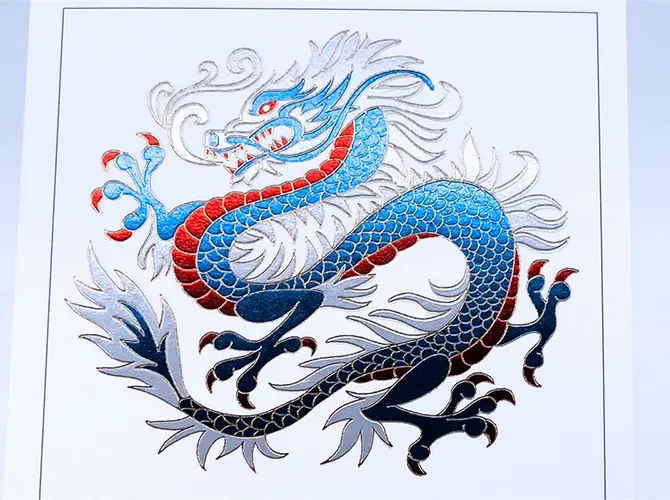

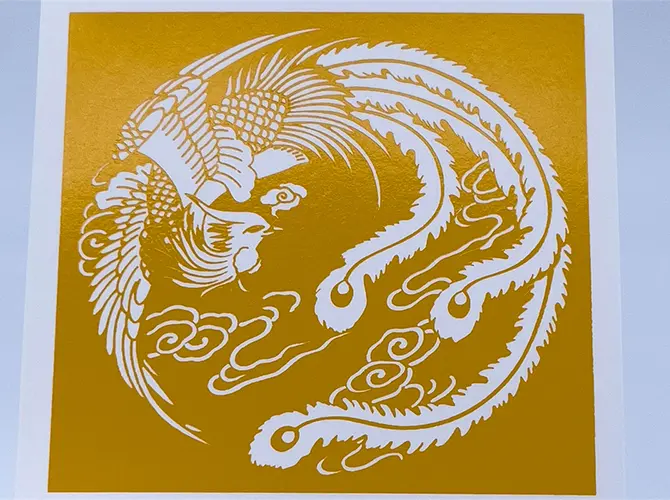

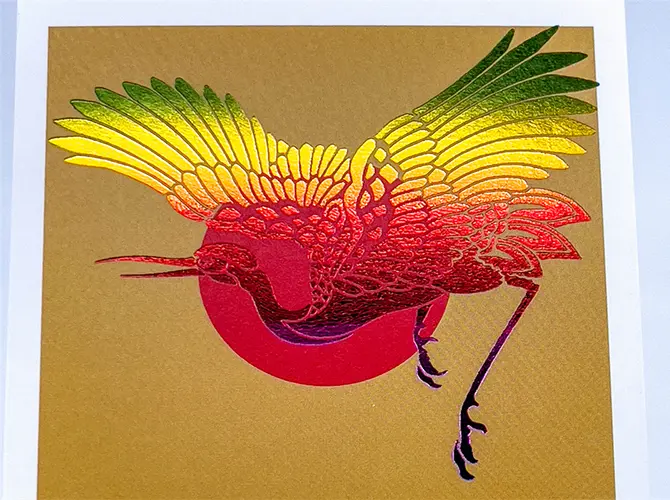

For Paper, Coated Paper, Laminated Paper, Rough Paper, Soft-Touch Paper
Type S:
For UV Coated Paper, UV Printed Paper
PL Type:
Basic Application
For AS, ABS, PS, PET, PETG, PVC, PU, PA, PMMA, PE, PVC, APET materials, etc
Enhanced attributes
PL1: Over-stampable surface
PL2: Reinforcement on glass fiber products and over-stampable surface
PL4S: Double-sides foil is primarily used for solid stamping on acrylic surfaces.
PL4F: Double-sides foil is primarily used for detailed stamping on acrylic surfaces.
PR Type:
For AS, ABS, PS, PET, PETG, PVC, PU, PA, PMMA, PE, PVC, APET materials, etc.
This type offers an enhanced metallic texture (brighter, better metal effect).
UL Type:
Used for stamping on the electroplated surfaces of plastic products, UV-treated surfaces, and the surfaces of nylon fiber products, as well as mixed rigid plastic materials.
GB Type:

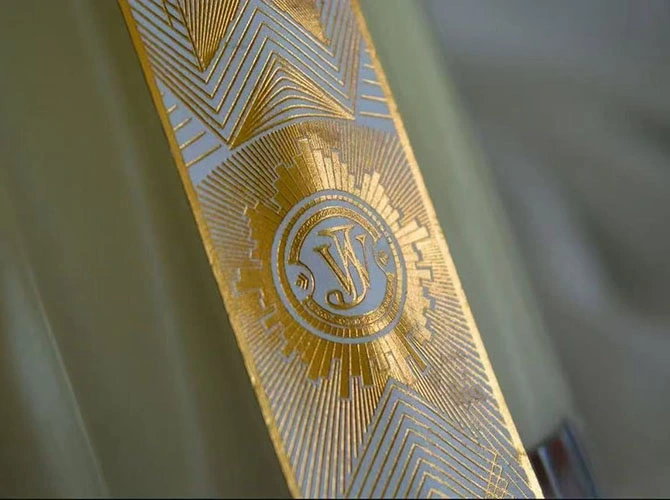

Used for stamping on the UV-treated surfaces of glass products such as wine bottles, and it can withstand baking without cracking or bubbling and is resistant to alcohol.
Upgrade to G200 Advanced Plastic Series when your application involves: difficult-to-bond / low-surface-energy plastics | halogen-sensitive electronics or medical applications | UV-coated or vacuum-metallized surfaces | double-sided stamping requirements | rigid olefin containers (PP/PE)
